Unbalanced Series Battery Banks: Causes and Fixes

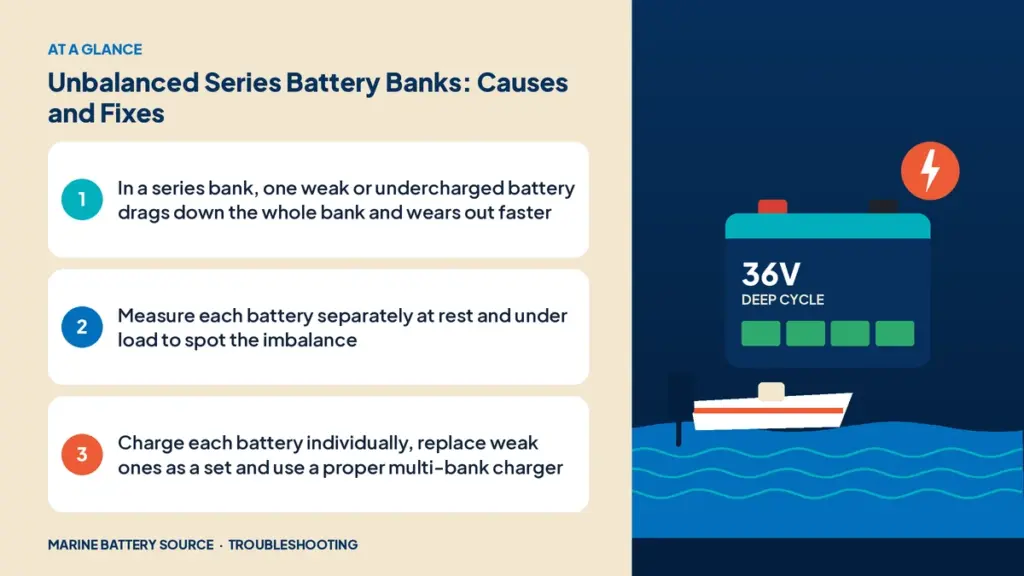

Most 24V and 36V trolling motors run on two or three 12V batteries wired in series. When those batteries stop matching, with one at a different voltage or capacity than the others, the bank is unbalanced. An unbalanced bank delivers less run time, loses power early and wears out faster. This guide explains why banks go out of balance, how to test them and how to fix the problem.

How series banks work

In a series bank, current flows through every battery in turn. Each battery must deliver the same current, so the weakest battery limits the bank. If one battery has less capacity, it empties first, and its voltage collapses, while the others still have charge. Then, when charging, the weak battery may reach full first and get overcharged, or never reach full at all, depending on the charger.

Causes of imbalance

• Mixed ages or brands: a new battery added to old ones.
• Unequal charging: a single-output charger across the whole bank, or one bank of a multi-bank charger failing.
• Accessory loads on one battery: powering electronics or a livewell from just one battery in the series bank.
• Temperature differences: one battery in a hotter spot ages faster.
• A failing cell in one battery.
• Loose or corroded jumpers between batteries.

Symptoms

• Trolling motor losing power earlier than it used to
• One battery hotter than the others
• Different resting voltages between batteries
• A charger fault on one bank
• One battery needing more water (flooded)

How to test

1. Charge fully using the normal charger.
2. Rest the bank several hours.
3. Measure each battery separately. In a healthy bank, resting voltages should be close, within about 0.1V of each other for lead-acid.
4. Run the motor for a while, then measure each battery under load. The weak battery will sag more.
5. Load test each battery individually after recharging.

The accessory load trap

A common mistake is connecting electronics or a 12V accessory to one battery in a 24V or 36V bank. That battery gets discharged more than the others, and the bank goes out of balance quickly. Power 12V accessories from the start battery or a dedicated battery. If you must draw 12V from a higher-voltage bank, use a DC-DC converter designed for it.

Fixing an unbalanced bank

If all batteries are healthy

1. Disconnect the series jumpers.
2. Charge each battery individually to full with a 12V charger.
3. Reconnect and check that resting voltages match.
4. Fix the cause: charger, accessory loads or connections.

If one battery is weak

• Replacing just one battery in an old bank often leads to imbalance again, because the new battery doesn’t match the old ones.
• If the others are near the end of their life, replace the bank as a set.
• If they’re fairly new, a matching replacement may work.

Chargers for series banks

• Multi-bank chargers charge each 12V battery independently, keeping them balanced. Make sure each bank works.
• Single-output 24V or 36V chargers charge the whole string but can’t correct imbalance.

The EPOCH 4-bank charger charges up to four 12V batteries independently.

Lithium series banks

Lithium batteries in series also need to stay balanced. Each battery’s BMS balances its own cells, but not across batteries. Use batteries designed for series use, of the same model and age, and follow the manufacturer’s limits. A single-case 24V or 36V lithium battery avoids series balancing altogether. The EPOCH 36V 50Ah and the Lithium Rhino 36V 65Ah conversion kit are single-battery options.

Check the jumpers

Corroded or loose jumper cables between batteries cause voltage drop and uneven current. Inspect, clean and tighten them. Replace corroded jumpers with properly sized tinned cable. See replacing battery cables on a boat and voltage drop under load.

Example

A 36V bass boat bank gets shorter run times every month. Resting voltages after charging read 12.7V, 12.7V and 12.3V. The third battery powers a small livewell pump through a separate connection. Moving the pump to the start battery, charging the third battery separately and replacing it after it fails a load test restores run time.

Flooded batteries and specific gravity

If your bank uses flooded lead-acid batteries, a hydrometer gives a more detailed picture than voltage. Measure each cell of each battery after a full charge. Cells should be close in specific gravity. A battery with one low cell is failing, and it will drag the bank down no matter how well you charge it. Check electrolyte levels while you’re at it; a battery that uses more water than the others is often the one being overcharged, which is another sign of imbalance.

How much run time an imbalance costs

In a three-battery 36V bank, the usable capacity is limited by the weakest battery. If two batteries can deliver 100Ah and the third has dropped to 70Ah, the bank effectively delivers about 70Ah before the weak battery is empty and the motor fades. That’s a 30% loss of run time, even though two of the batteries are fine. Worse, running the weak battery to empty while the others still have charge pushes it into deep discharge, which accelerates its decline.

Preventing imbalance

• Buy batteries as a matched set.
• Use a multi-bank charger with one bank per battery.
• Don’t draw 12V accessories from one battery in a series bank.
• Keep connections clean and tight.
• Test each battery twice a season.

Related guides

Fish finder noise can be worse with a struggling bank; see fish finder interference from the trolling motor. Charger faults on one bank are covered in battery charger fault lights. For more, read boat electrical problems troubleshooting and the marine battery troubleshooting guide.

Shop trolling motor batteries.

Frequently asked questions

What causes an unbalanced battery bank?

Mixed battery ages, unequal charging, accessory loads on one battery, loose jumpers and failing cells.

How do I balance my boat batteries?

Disconnect the series jumpers, charge each battery individually to full, reconnect and fix the cause.

Can I replace just one battery in a 36V bank?

You can, but a new battery with old ones often becomes unbalanced again. Replace the set if the others are aging.

Should I power my fish finder from one battery in my trolling bank?

No. That unbalances the bank. Use the start battery or a dedicated battery.

Do lithium batteries in series need balancing?

Each battery balances its own cells, but batteries in series should be matched. A single-case 36V lithium battery avoids the issue.
