Description
This EPOCH 24-volt, 230 Ah lithium iron phosphate (LiFePO4) battery is built for trolling-motor runtime and house loads such as electronics, lighting and pumps. At roughly 97 lb, it takes meaningful weight out of the boat compared with a lead-acid battery of similar usable capacity. The case follows a BCI 8D footprint footprint; confirm your tray size and terminal orientation before you buy. Bluetooth monitoring lets you check state of charge from a phone app; internal heating protects the cells while charging in freezing weather; IP67 sealing (dust-tight and rated for temporary immersion) helps it shrug off spray. Pair it with a charger that offers a LiFePO4/lithium charge profile.
Highlights
- 24 V, 230 Ah LiFePO4
- BCI 8D footprint footprint
- 97 lb

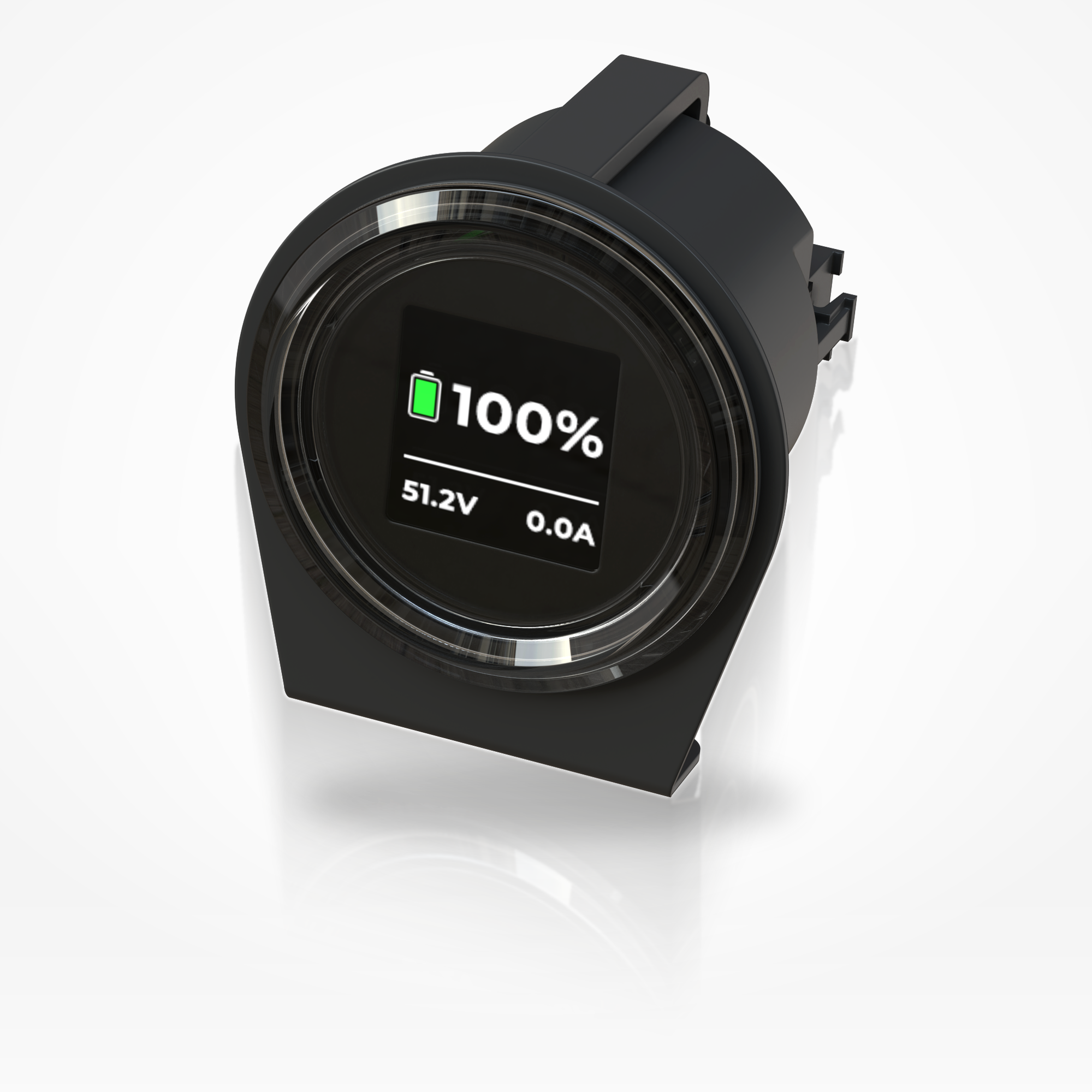

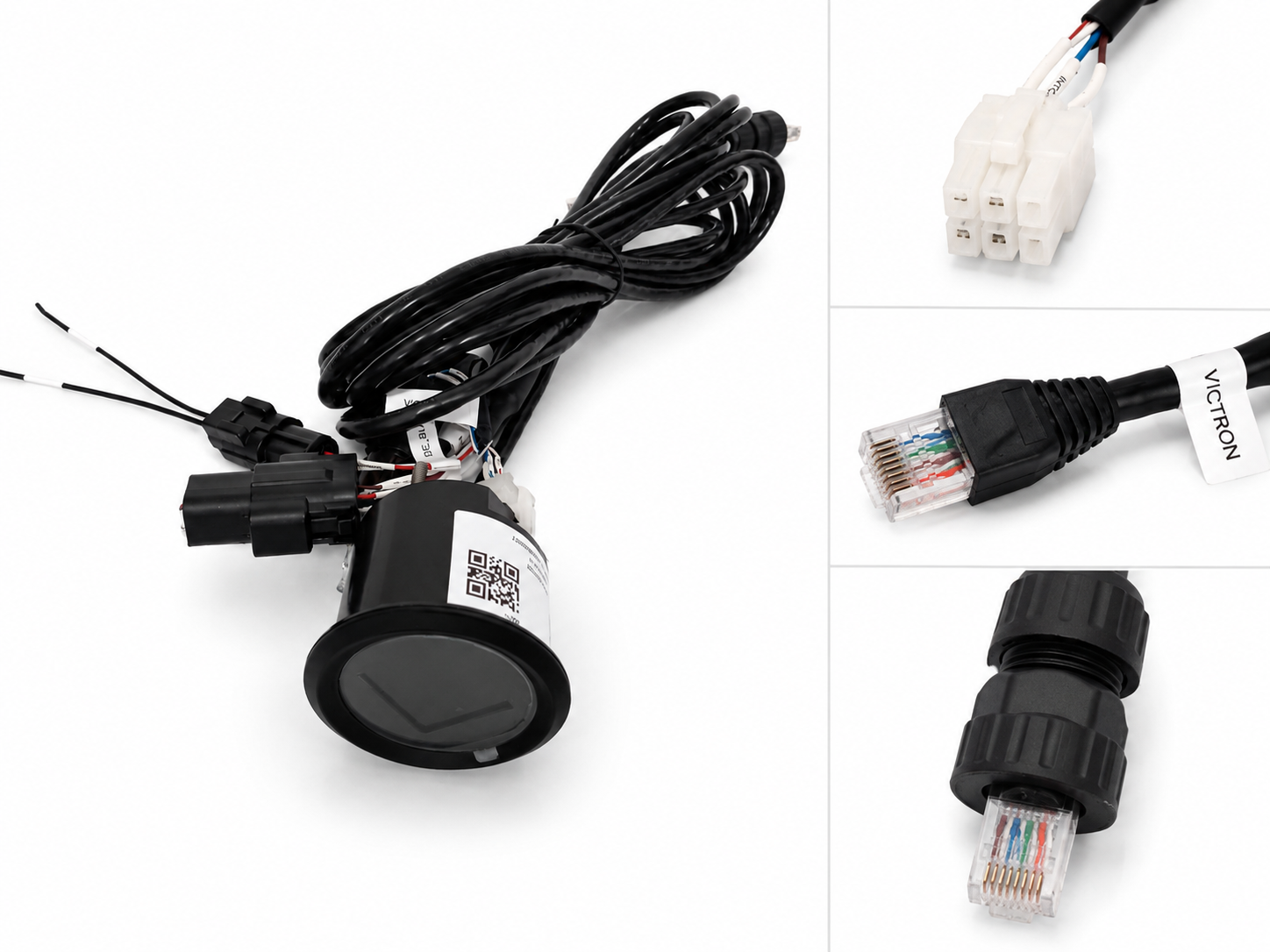

- Bluetooth app monitoring
- Internal heating for cold charging
- IP67 rated
- 11 year warranty
- Best for: Trolling Motor, House Bank
Specifications
| Brand | EPOCH |
|---|---|
| Model / SKU | C24230A |
| Nominal voltage | 24 V |
| Capacity | 230 Ah |
| Chemistry | Lithium iron phosphate (LiFePO4) |
| BCI group size | 8D footprint |
| Dimensions (L × W × H) | 20.86 × 8.65 × 12.06 in |
| Weight | 97 lb |
| Bluetooth monitoring | Yes |
| Internal heating (cold-weather charging) | Yes |
| Ingress protection | IP67 |
| Warranty | 11 year |
| Max continuous discharge | 110A |
| Max continuous charge current | 230A |
| Cycle life | 3,500+ cycles |
| Stored energy | 5,888Wh / 5.89kWh |
| Series connections | Maximum 2 batteries in series, up to 48V nominal |
| Parallel connections | Maximum 16 batteries in parallel, plug-and-play |
| Enclosure protection | IP67 waterproof and dustproof |
| Charge temperature range | -30°C to 55°C / -22°F to 131°F, with self-heating |
Specs are from the manufacturer. Check your boat’s battery compartment, terminal layout and charging system before you order.
