Description

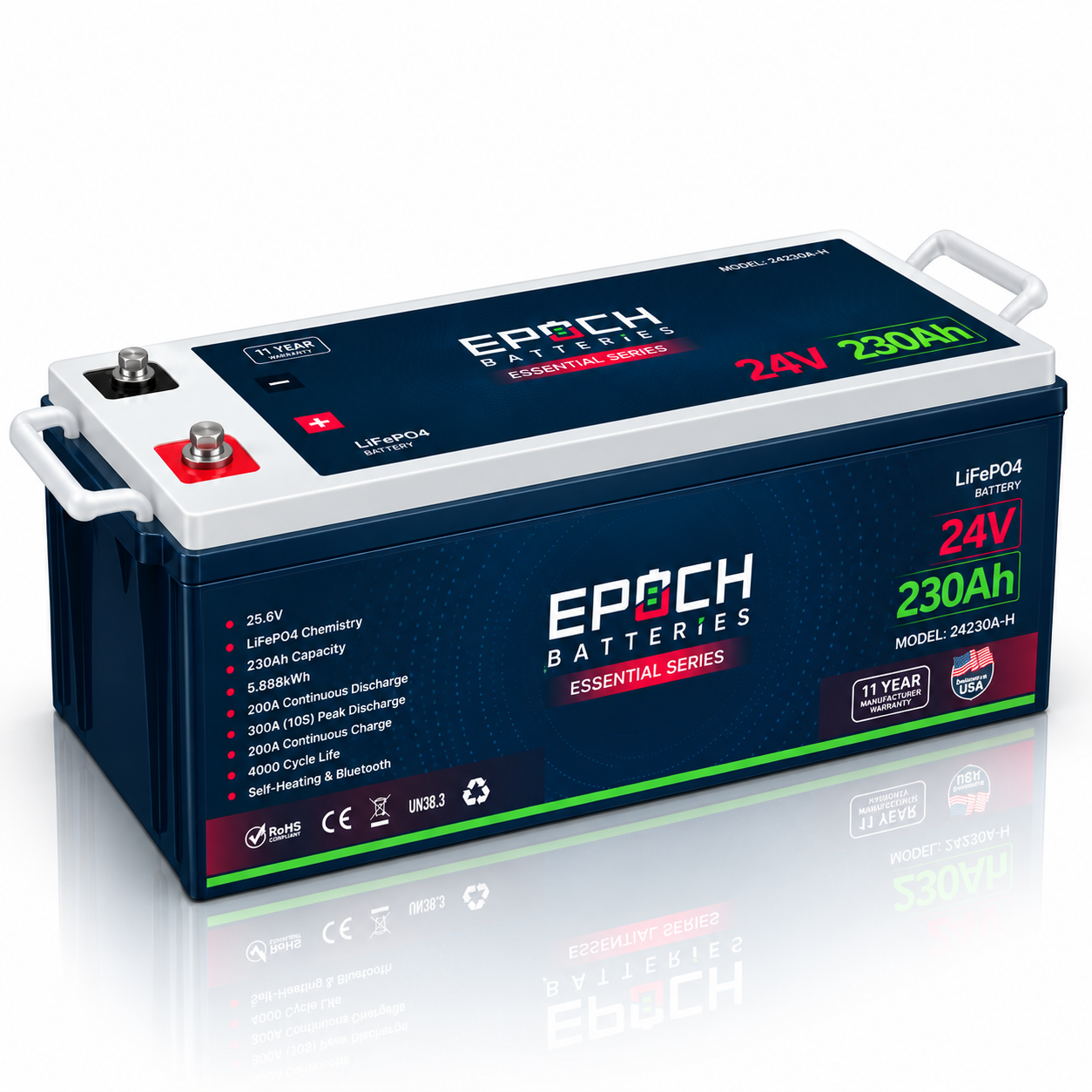

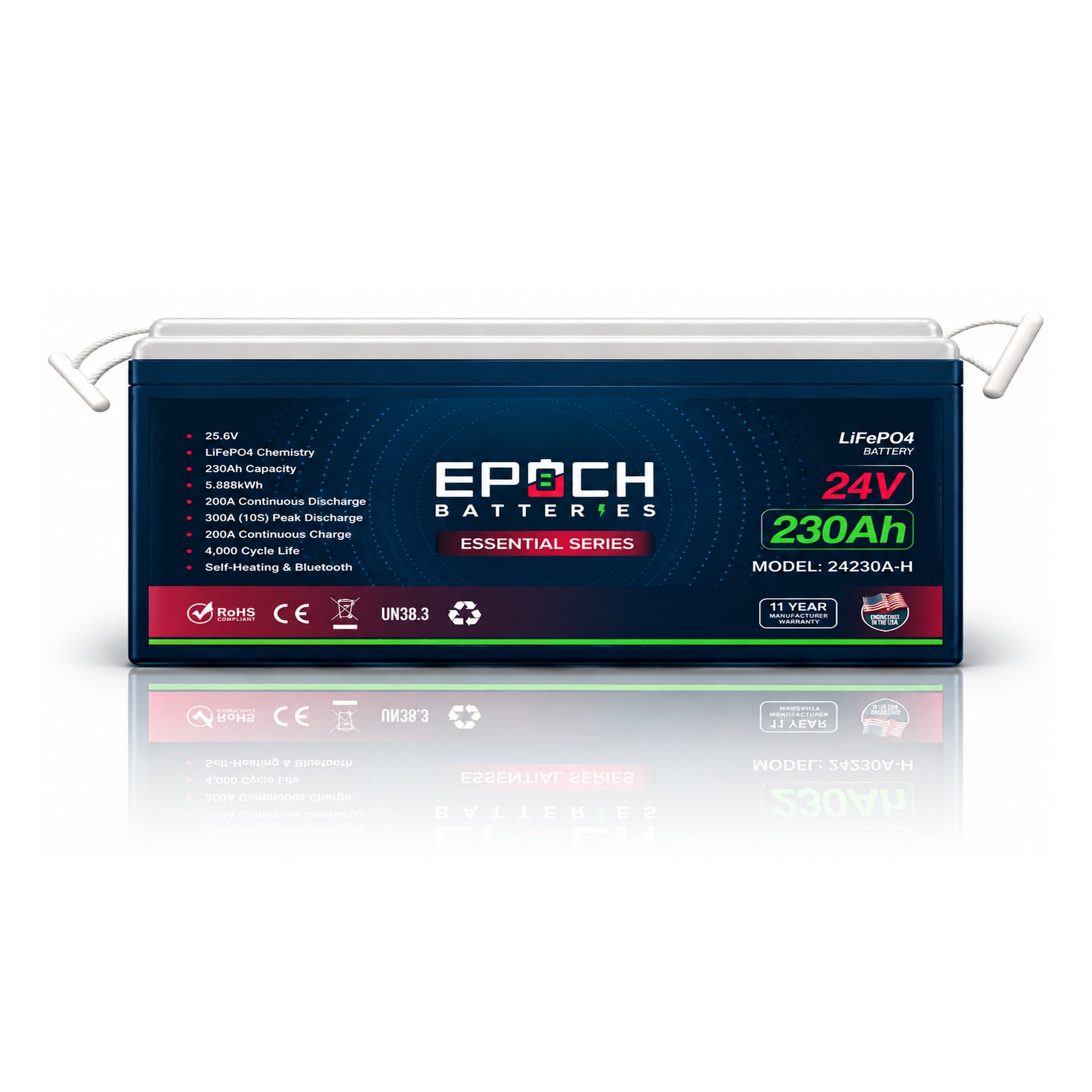

This EPOCH 24-volt, 230 Ah lithium iron phosphate (LiFePO4) battery is built for trolling-motor runtime and house loads such as electronics, lighting and pumps. At roughly 84 lb, it takes meaningful weight out of the boat compared with a lead-acid battery of similar usable capacity. The case follows a BCI 8D footprint; confirm your tray size and terminal orientation before you buy. Bluetooth monitoring lets you check state of charge from a phone app; internal heating protects the cells while charging in freezing weather. Pair it with a charger that offers a LiFePO4/lithium charge profile.
Highlights
- 24 V, 230 Ah LiFePO4
- BCI 8D footprint
- 84 lb
- Bluetooth app monitoring
- Internal heating for cold charging
- 11 year warranty
- Best for: Trolling Motor, House Bank
Specifications
| Brand | EPOCH |
|---|---|
| Model / SKU | 24230A-H |
| Nominal voltage | 24 V |
| Capacity | 230 Ah |
| Chemistry | Lithium iron phosphate (LiFePO4) |
| BCI group size | 8D |
| Dimensions (L × W × H) | 20.55 × 9.45 × 8.6 in |
| Weight | 84 lb |
| Bluetooth monitoring | Yes |
| Internal heating (cold-weather charging) | Yes |
| Warranty | 11 year |
| Max continuous discharge | 200A |
| Peak discharge | 300A for up to 10 seconds |
| Max continuous charge current | 200A |
| Cycle life | 4,000+ cycles |
| Stored energy | 5.89kWh / 5,888Wh |
| Terminal type | M8 female |
| Charge temperature range | -20°C to 55°C / -4°F to 131°F, with self-heating |
| Current sensing | BMS-integrated shunt; 0.2A accuracy on discharge |
Specs are from the manufacturer. Check your boat’s battery compartment, terminal layout and charging system before you order.
