Description

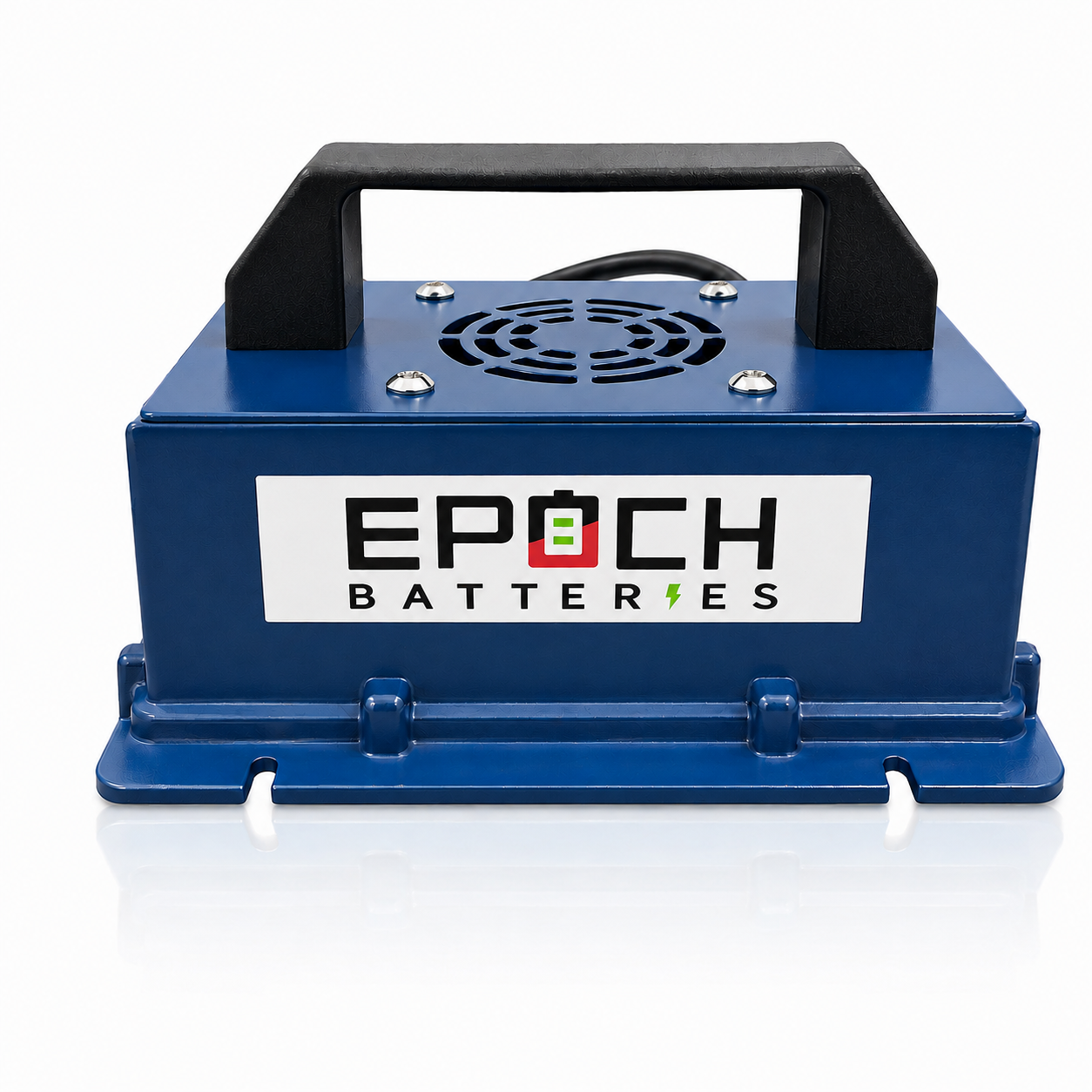

This EPOCH unit is a waterproof charger for 24 V with up to 15 A of output for keeping marine batteries topped up between trips. It is built around a lithium (LiFePO4) charge profile, so match it to a lithium battery bank of the same voltage.
Highlights
- IP67 rated
Specifications
| Brand | EPOCH |
|---|---|
| Model / SKU | CHG-24V15A |
| Nominal voltage | 24 V |
| Ingress protection | IP67 |
| IP rating | IP67 dustproof and waterproof |

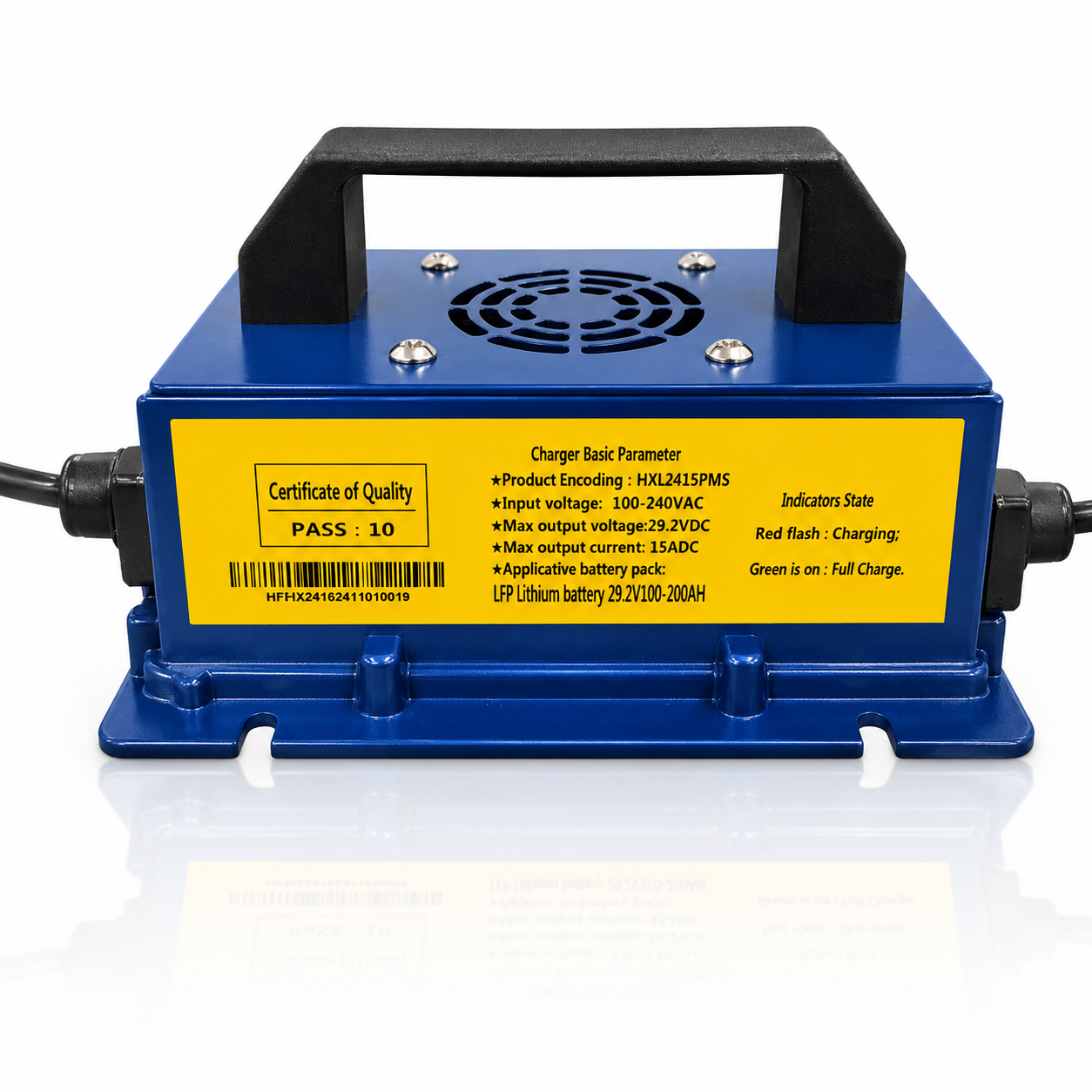

| Input voltage | Product label lists 100–240VAC; product page notes standard 120V AC outlet use |
| Charge profile | Dedicated LiFePO4 charging behavior using fast bulk charging and controlled voltage top-off |
| Output current | 15A / 15ADC max output current |
| Output voltage | 29.2VDC max output voltage |
| Cooling | Aluminum heatsink body with active fan cooling |
Specs are from the manufacturer. Check your boat’s battery compartment, terminal layout and charging system before you order.
