Description

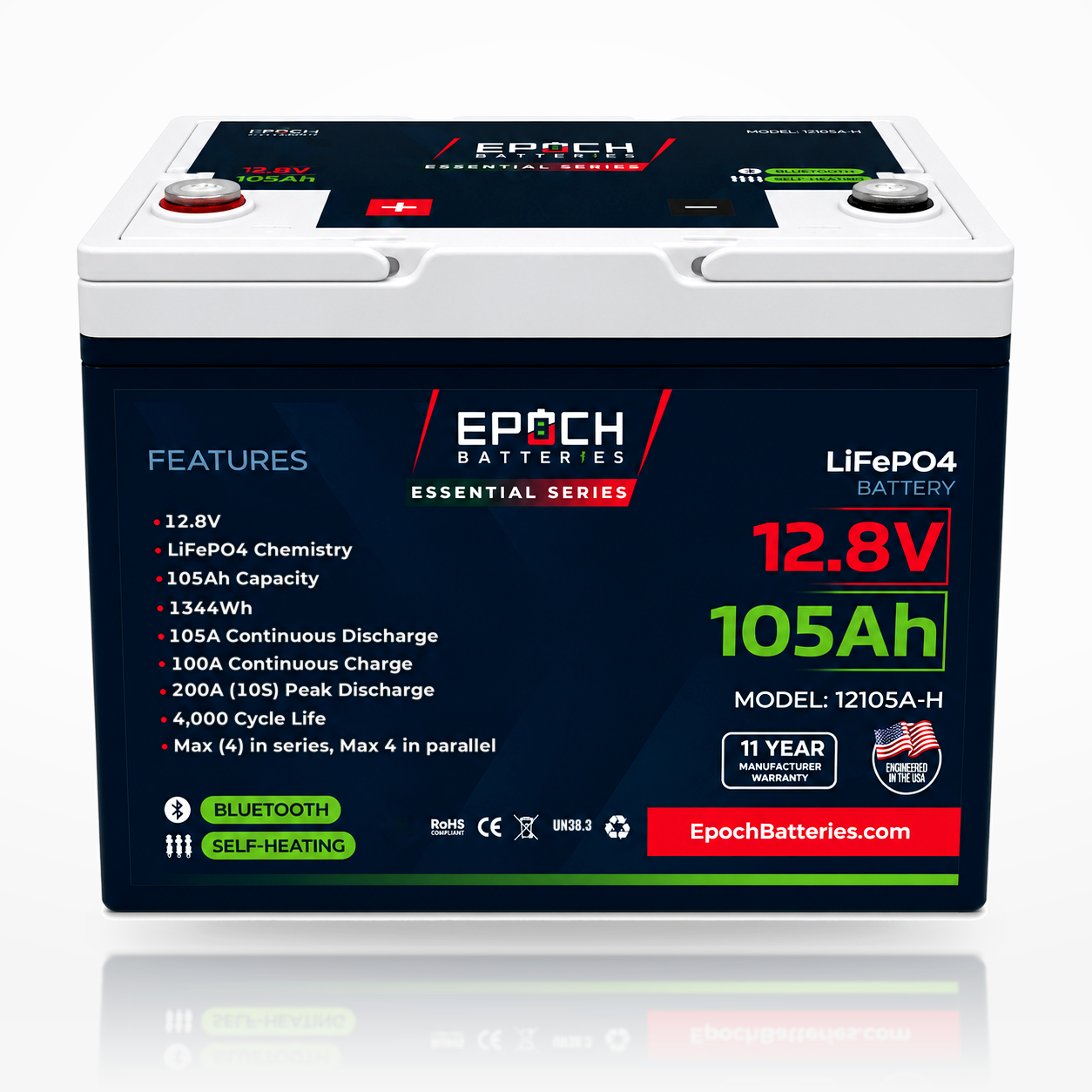

This EPOCH 12-volt, 105 Ah lithium iron phosphate (LiFePO4) battery is built for trolling-motor runtime and house loads such as electronics, lighting and pumps. At roughly 22.1 lb, it takes meaningful weight out of the boat compared with a lead-acid battery of similar usable capacity. The case follows a BCI 24 footprint; confirm your tray size and terminal orientation before you buy. Bluetooth monitoring lets you check state of charge from a phone app; internal heating protects the cells while charging in freezing weather. Pair it with a charger that offers a LiFePO4/lithium charge profile.
Highlights
- 12 V, 105 Ah LiFePO4
- BCI 24 footprint
- 22.1 lb
- Bluetooth app monitoring
- Internal heating for cold charging
- 11 year warranty
- Best for: Trolling Motor, House Bank
Specifications
| Brand | EPOCH |
|---|---|
| Model / SKU | 12105A-H |
| Nominal voltage | 12 V |
| Capacity | 105 Ah |
| Chemistry | Lithium iron phosphate (LiFePO4) |
| BCI group size | 24 |
| Dimensions (L × W × H) | 10.25 × 6.75 × 9 in |
| Weight | 22.1 lb |
| Bluetooth monitoring | Yes |
| Internal heating (cold-weather charging) | Yes |
| Warranty | 11 year |
| Max continuous discharge | 105A |
| Max discharge peak current | 200A for up to 10 seconds |
| Max continuous charge current | 100A |
| Cycle life | 4,000 cycles with ≥80% capacity remaining |
| Series connections | Max 4 batteries in series, up to 48V |
| Parallel connections | Max 4 batteries in parallel, up to 420Ah |
| Terminal type | M8 female (M8 bolt) |
| Enclosure protection | IP54 — dust protected, splash resistant; not submersible |
| Charge temperature range | −20°C to 55°C / −4°F to 131°F, with heating |
| Current sensing | BMS-integrated shunt; 0.2A accuracy on discharge |
Specs are from the manufacturer. Check your boat’s battery compartment, terminal layout and charging system before you order.
